Permanent Magnet Motors

The motors shown are representative of McMillan Electric’s capabilities.

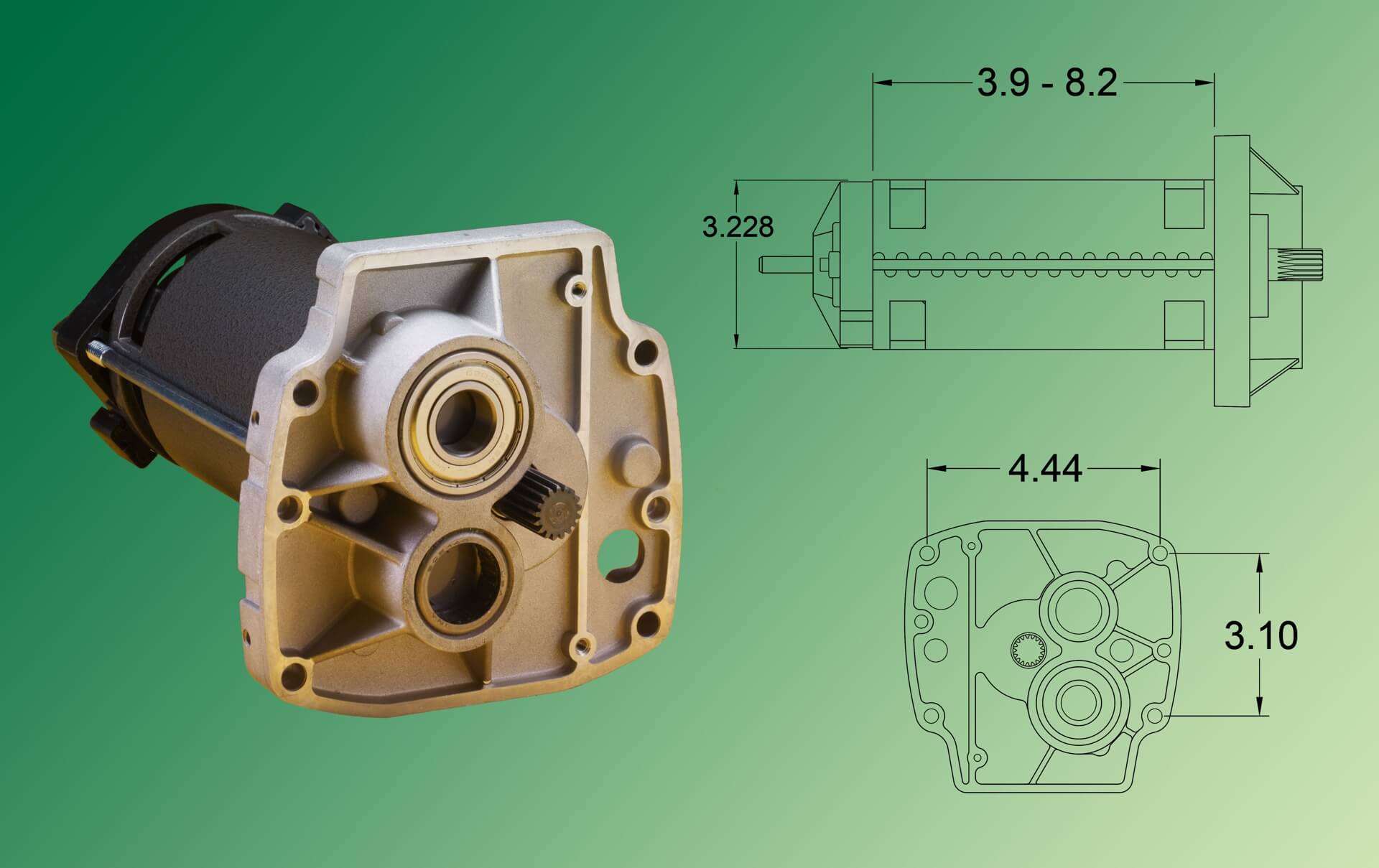

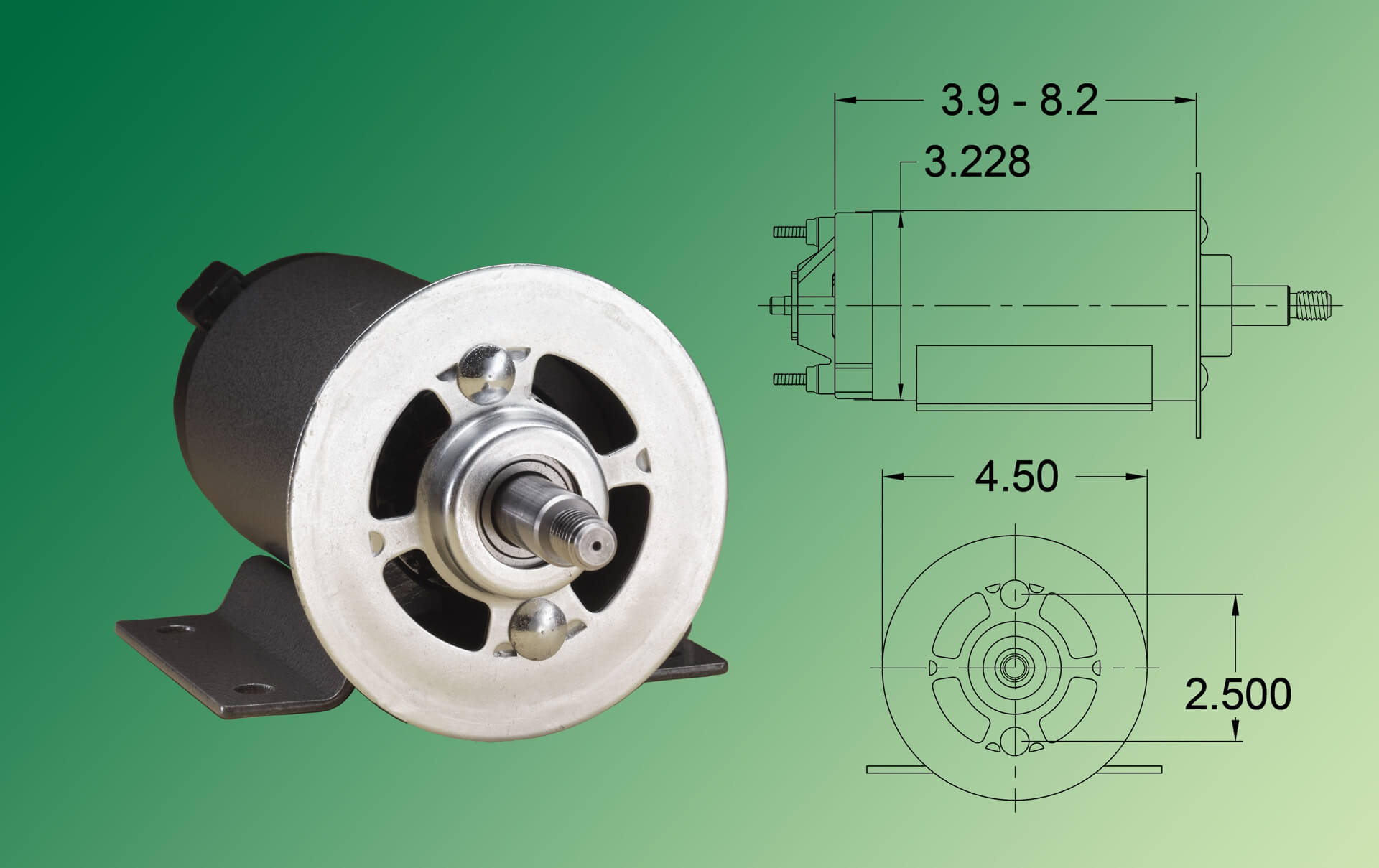

3 ¼” Permanent Magnet Motors

TYPICAL APPLICATIONS for the permanent magnet dc motor include: lawn and garden equipment, health and fitness equipment, small personal transportation equipment, compressors and pumps.

Motor Control Options.

  • Bolt, base, or face mount
  • 12 to 240VDC (PWM)
  • Perfect for lawn and garden equipment, fitness equipment, compressors, or pumps.
  • Variable speed
  • Sleeve or ball bearings
  • Shafts range from 8mm to 17mm diameter
  • 2,500 to 8,500 RPM
  • 1/20th to 3 HP
  • UL and CSA Recognized
  • Class A, B, or H insulation
  • Thermal overload protection
  • Dimension A varies from 4 to 7 inches.

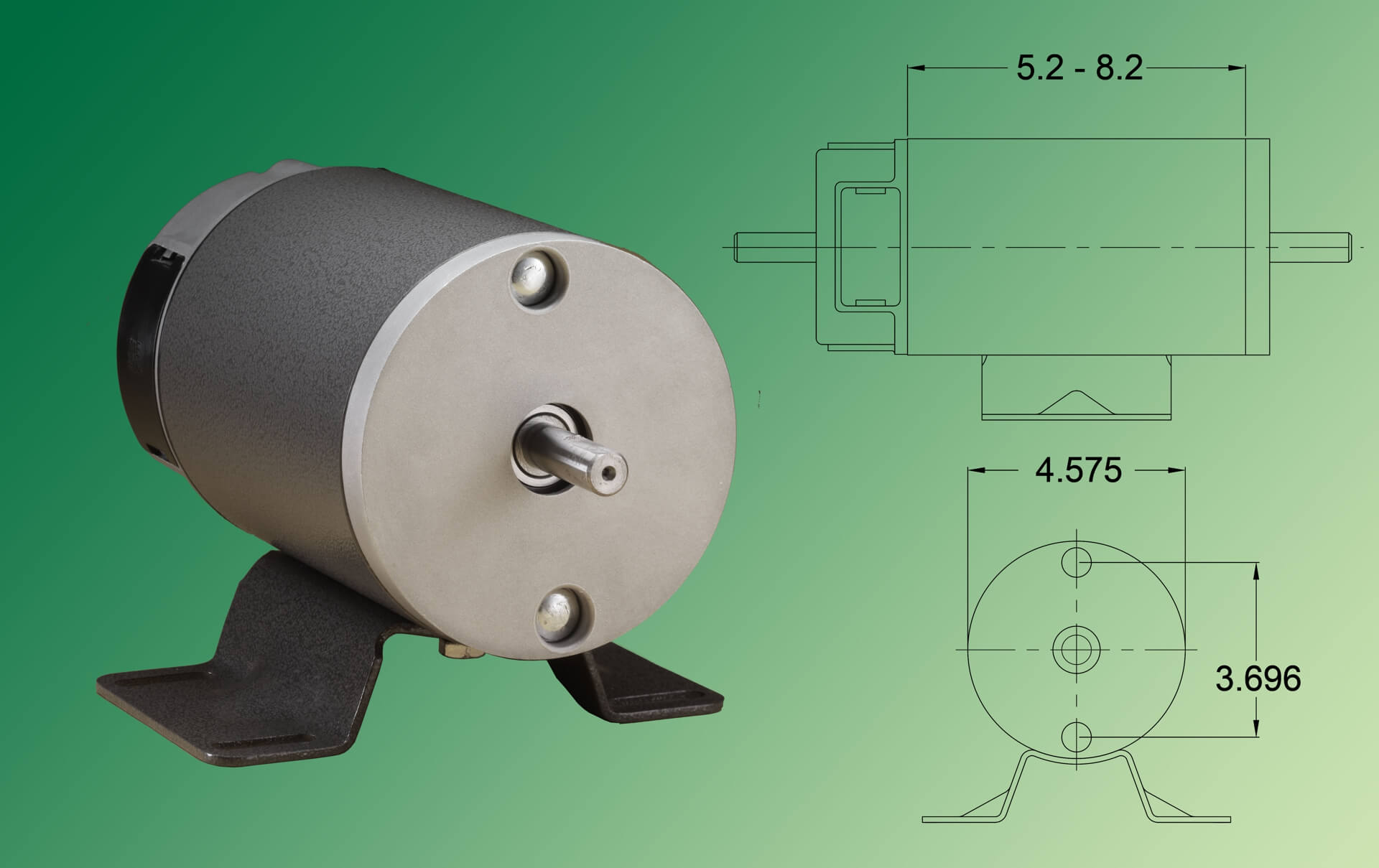

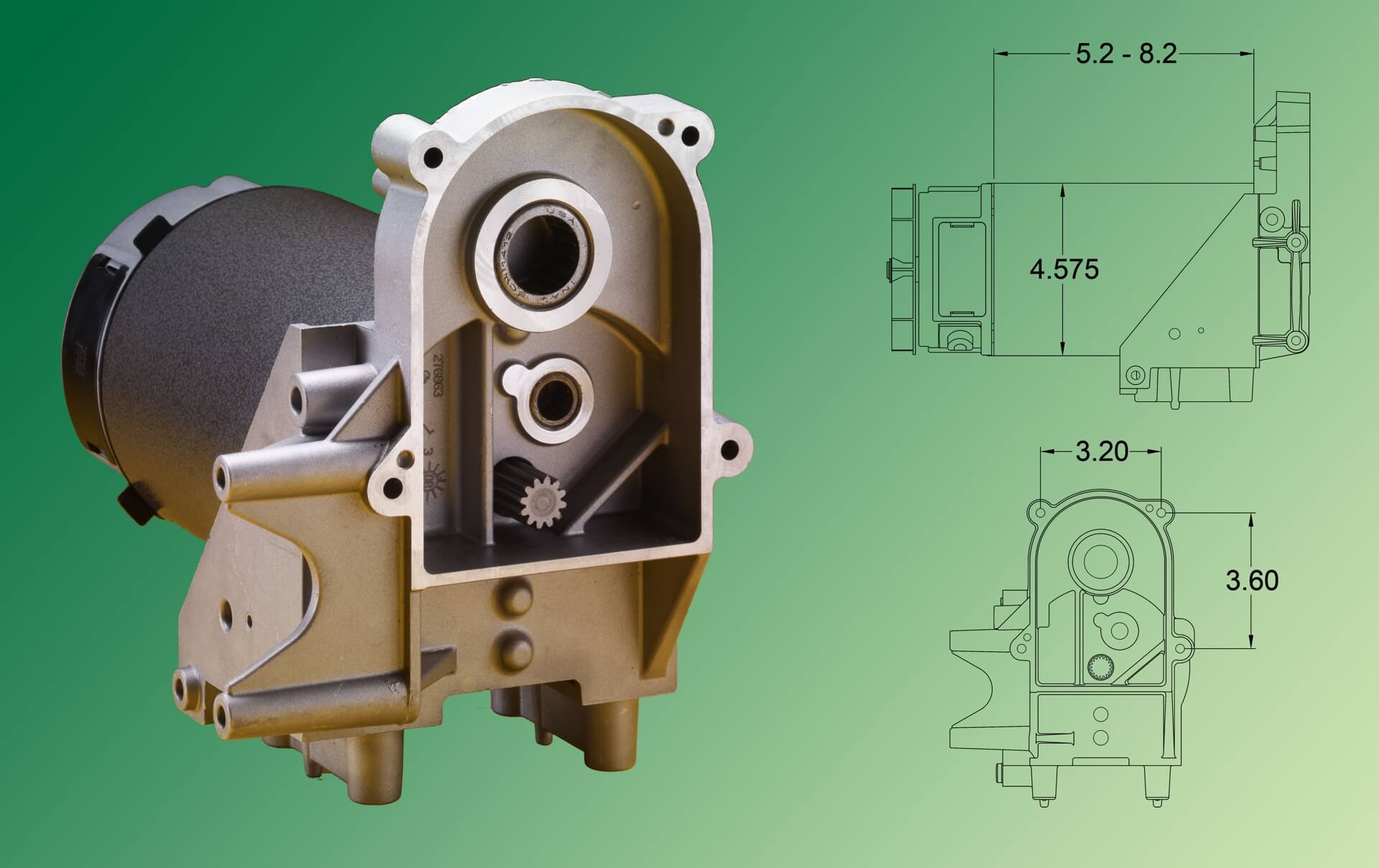

4 5/8” Permanent Magnet Motors

TYPICAL APPLICATIONS for the PMDC Motor include: fitness equipment, lawn/garden equipment, food processing equipment, packaging machinery, mail handling systems, gate/door openers, pottery wheels, compressors/pumps.

Motor Control Options.

  • Bolt, base, or face mount,
  • 12 to 240VDC (PWM)
  • Perfect for fitness equipment, packaging machinery, pottery wheels, compressors or pumps
  • Variable speed
  • Sleeve or ball bearings.
  • 17 to 24mm diameter shaft
  • Optional replaceable brushes
  • 800 to 8,500 RPM
  • ¼ to 4 HP
  • UL and CSA Recognized
  • Class A, B, or H insulation
  • Thermal overload protection
  • Dimension A varies from 4 to 7.9 inches.
