Shaded Six-Pole Motors

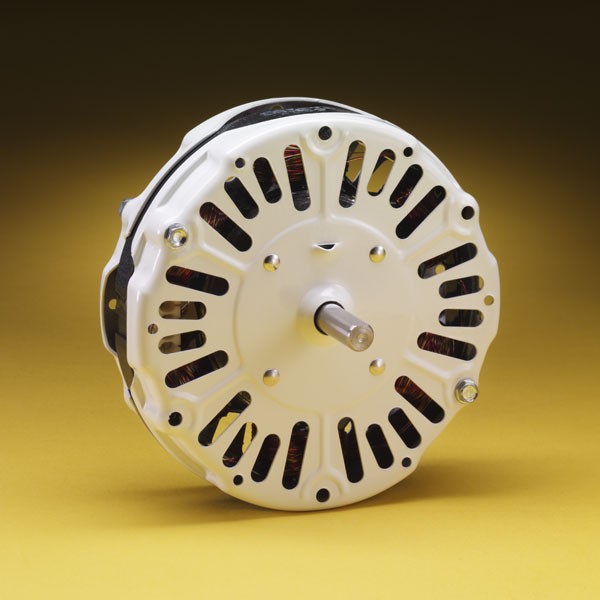

  SHADED SIX-POLE MOTOR
Unidirectional • Open Frame • 1,000 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 5/16 or 1/2-inch diameter shaft, 1/40 to 1/4 HP.

Dimension A varies from 2 1/8 to 3 5/8 inches.


  SHADED SIX-POLE MOTOR
Unidirectional • Totally Enclosed Frame • 1,000 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 5/16 or 1/2-inch diameter shaft, 1/40 to 1/6 HP.

Dimension A varies from 2 1/8 to 3 5/8 inches.


  SHADED SIX-POLE MOTOR
Unidirectional • Max Open Frame • 1,000 RPM

"Thinline" design for use in applications where space is limited.

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 5/16 or 3/8-inch diameter shaft, 1/40 to 1/15 HP.

Dimension A varies from 1 3/4 to 2 1/2 inches.


TYPICAL APPLICATIONS for the shaded six-pole motor include: fans, humidifiers, dehumidifiers, blowers, small appliances, and heating, ventilation and air conditioning equipment.



Shaded Four-Pole Motors

  SHADED FOUR-POLE MOTOR
Unidirectional • Open Frame • 1,500 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4, 5/16, 3/8 or 1/2-inch diameter shaft, 1/50 to 1/8 HP.

Dimension A varies from 2 1/4 to 3 3/4 inches.


  SHADED FOUR-POLE MOTOR
Unidirectional • Totally Enclosed Frame • 1,500 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4, 5/16, 3/8 or 1/2-inch diameter shaft, 1/50 to 1/15 HP.

Dimension A varies from 2 1/4 to 3 3/4 inches.


  SHADED FOUR-POLE MOTOR
Unidirectional • Max Open Frame • 1,500 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4, 5/16, 3/8 or 1/2-inch diameter shaft, 1/50 to 1/20 HP.

Dimension A varies from 2 1/4 to 3 1/4 inches.


TYPICAL APPLICATIONS for the shaded four-pole motor include: fans, blowers, humidifiers, dehumidifiers, air purifiers, small appliances, compressors, gearhead drives, pumps, and heating and ventilation equipment.




Shaded Two-Pole Motors

  SHADED TWO-POLE MOTOR
Unidirectional • Open Frame • 3,000 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4, 5/16, or 3/8-inch diameter shaft, 1/50 to 1/10 HP.

Dimension A varies from 2 5/8 to 4 1/8 inches.


  SHADED TWO-POLE MOTOR
Unidirectional • Totally Enclosed Frame • 3,000 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4, 5/16 or 3/8-inch diameter shaft, 1/50 to 1/15 HP.

Dimension A varies from 2 5/8 to 4 1/8 inches.


  SHADED TWO-POLE MOTOR
Unidirectional • Skeleton Frame • 3,000 RPM

Options include: single- or multi-speed, 100 to 240 VAC, 50 or 60 Hz., 1/4 or 5/16-inch diameter shaft, 1/50 to 1/10 HP.

Dimension A varies from 2 to 3 1/2 inches.


TYPICAL APPLICATIONS for the shaded two-pole motor include: fans, pumps, blowers, humidifiers, dehumidifiers, heaters and ventilators.
