Shaded Pole Motors

The motors shown are representative of McMillan Electric’s capabilities.

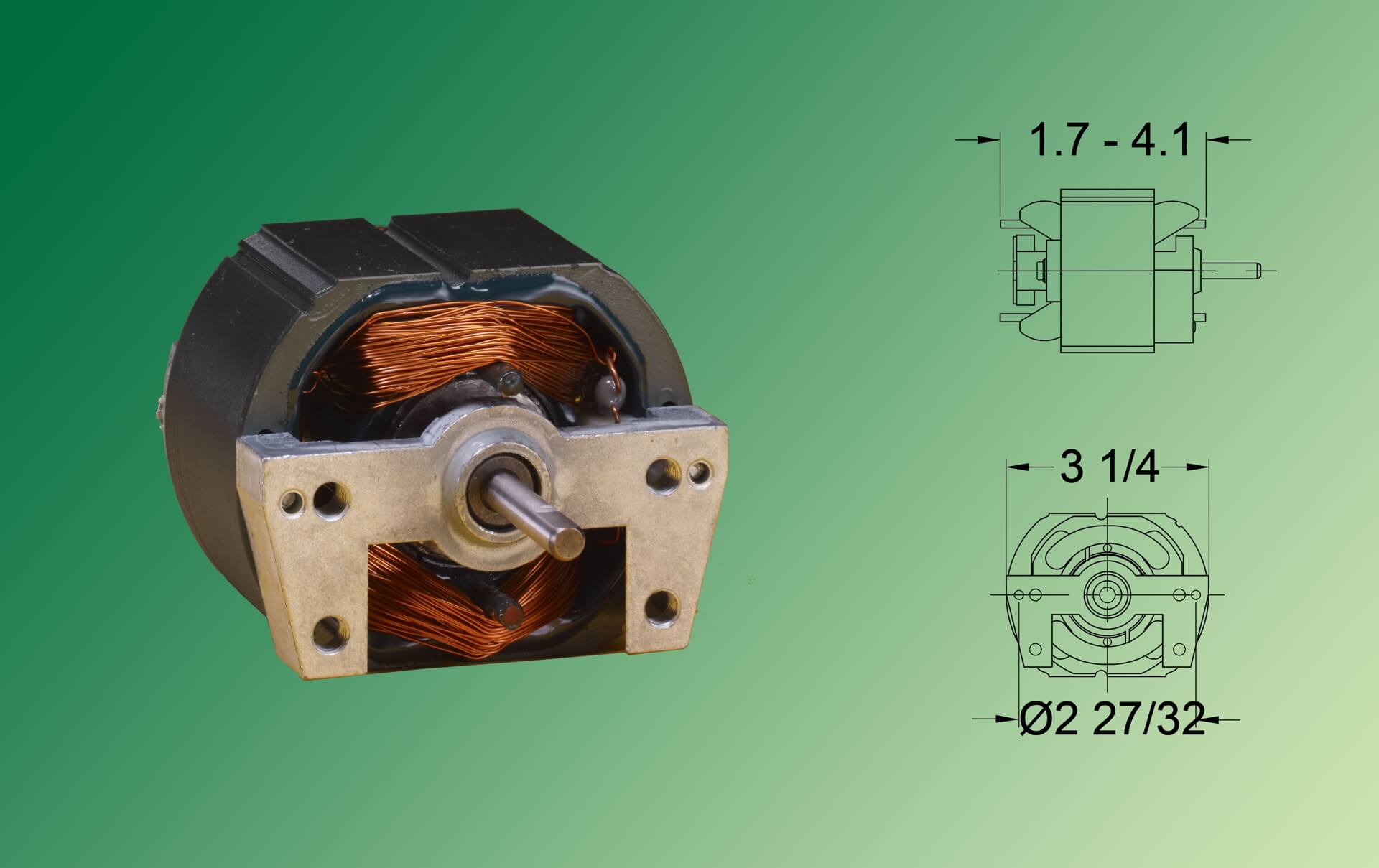

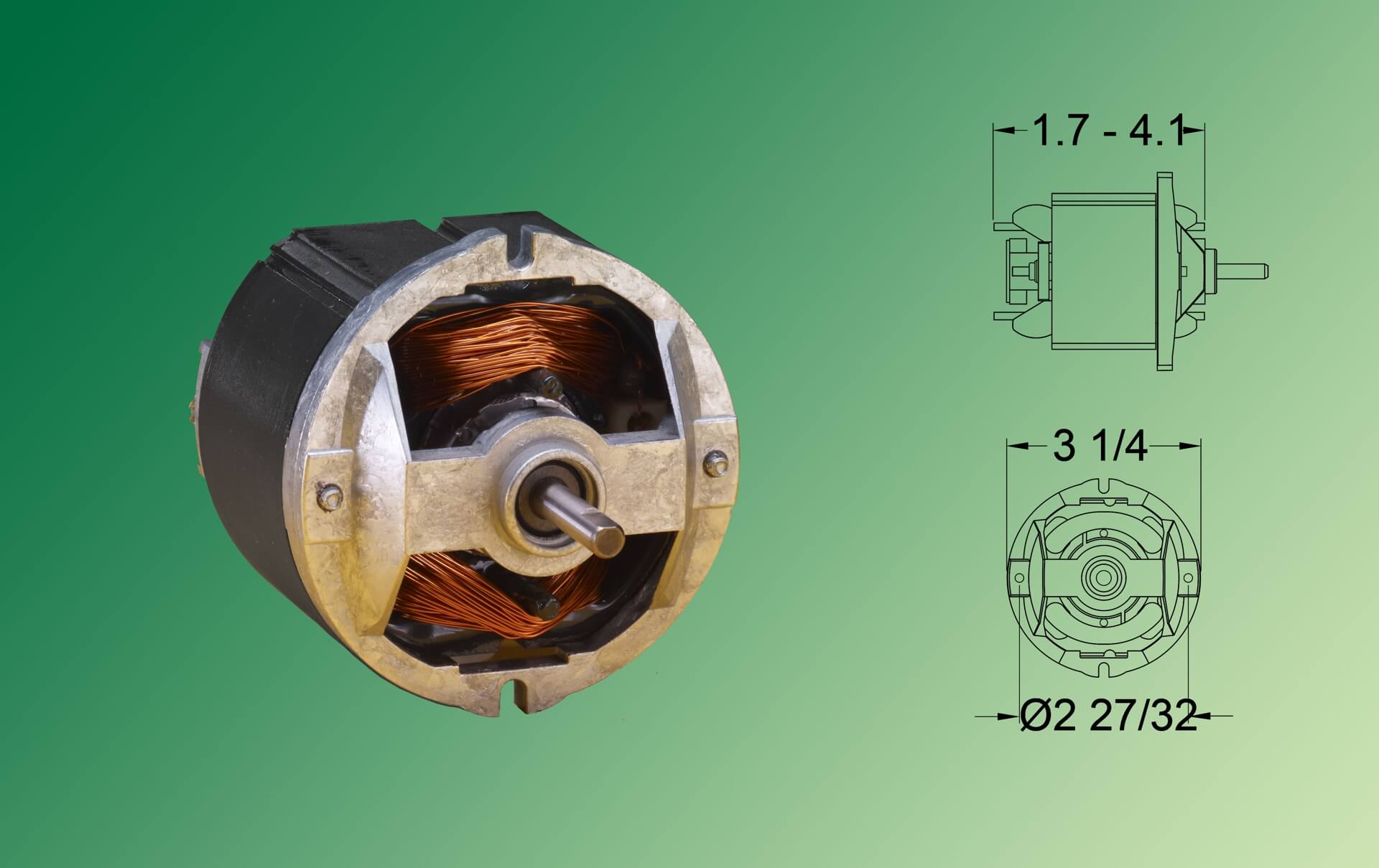

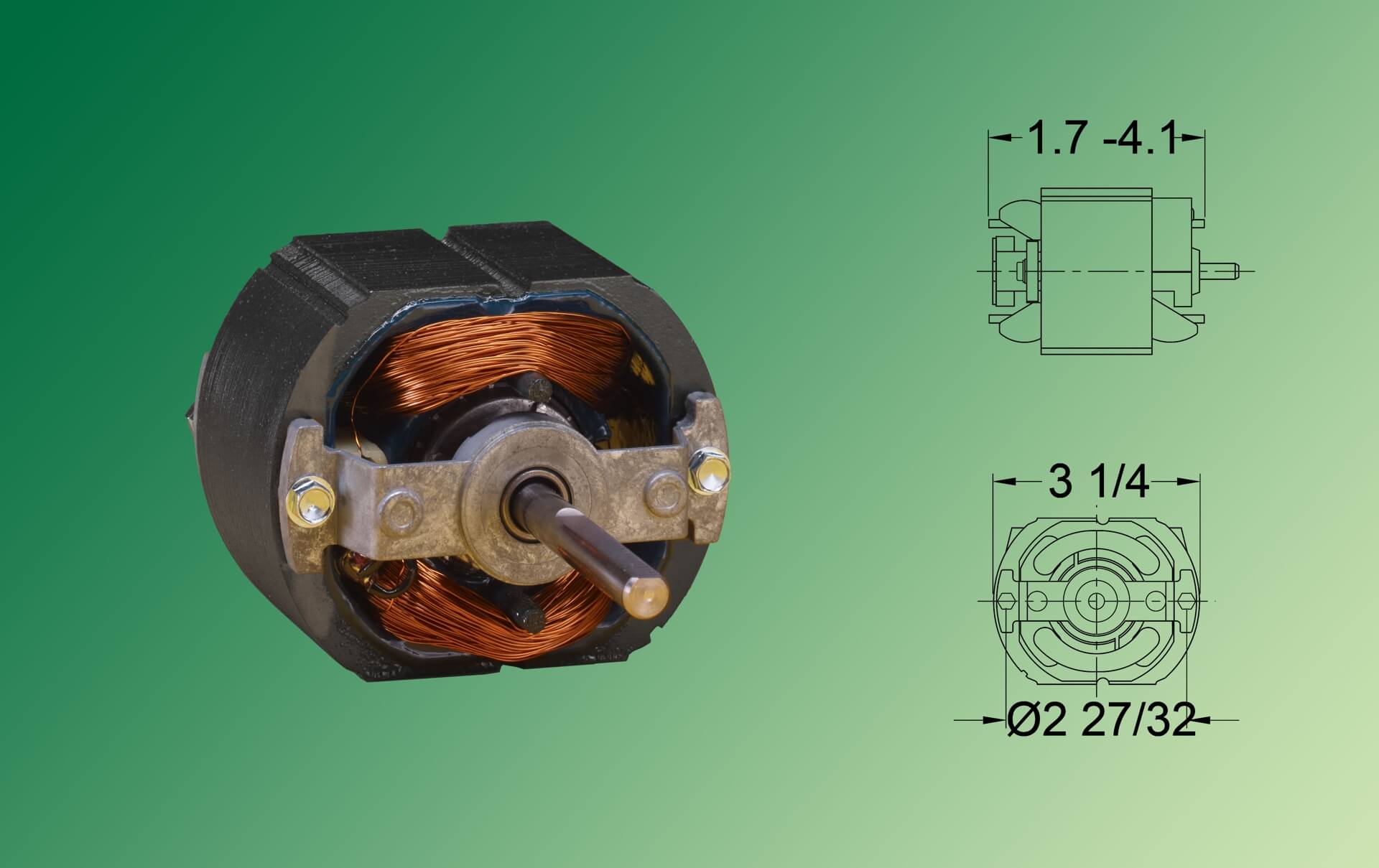

Shaded Two-Pole Motors



  • Open Frame
  • Unidirectional
  • Perfect for fans, humidifiers, compressors, pumps and HVAC equipment.
  • 3,000 RPM
  • Single or multi-speed
  • 100V to 240VAC
  • 50 or 60 Hz.
  • Shafts can be ¼, 5/16, or 3/8-inch diameter
  • 1/50th to 1/10th HP
  • UL and CSA Recognized.
  • Dimension A varies from 2 to 3½ inches.
TYPICAL APPLICATIONS for the shaded two-pole motor include: fans, pumps, blowers, humidifiers, dehumidifiers, heaters and ventilators.

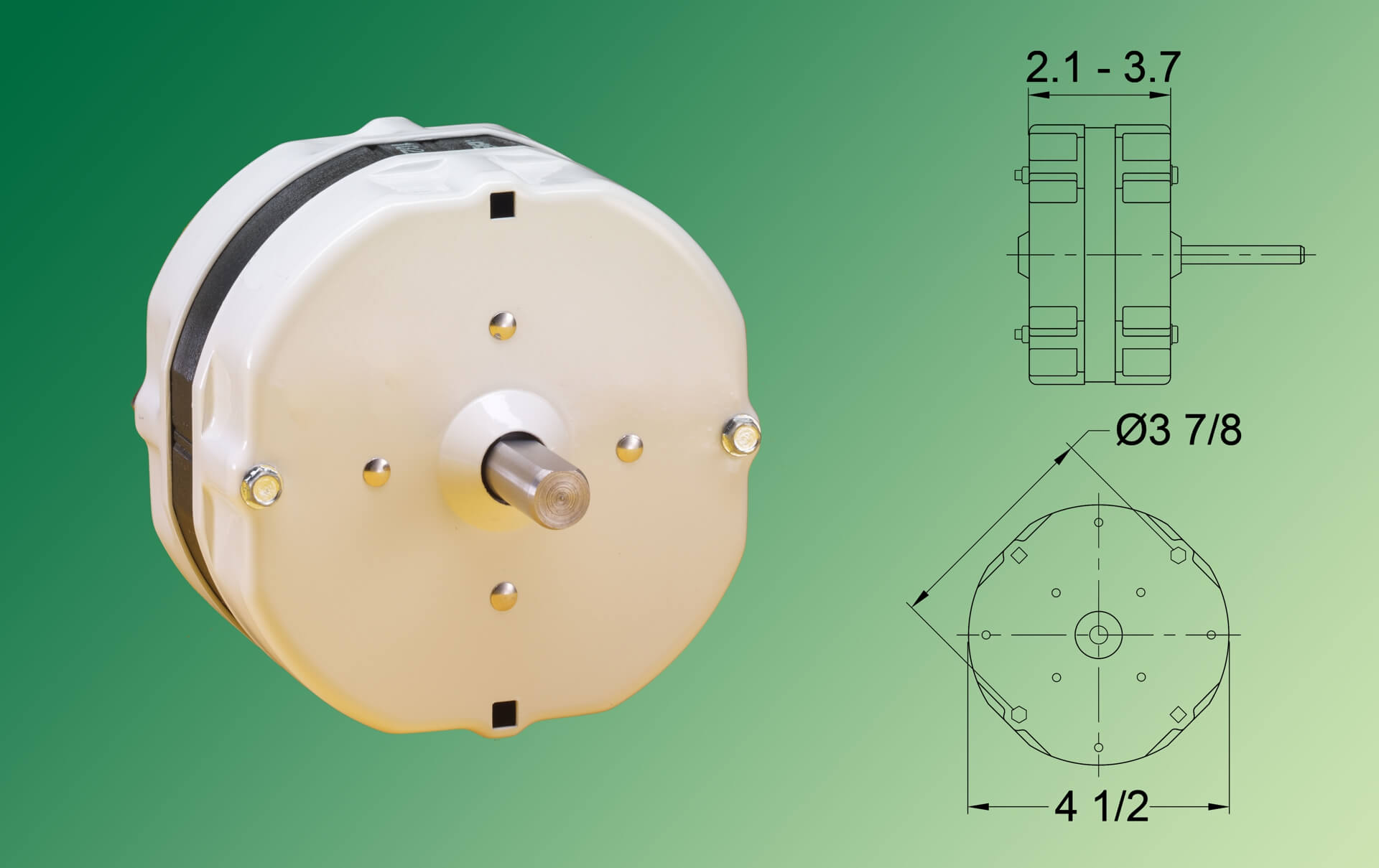

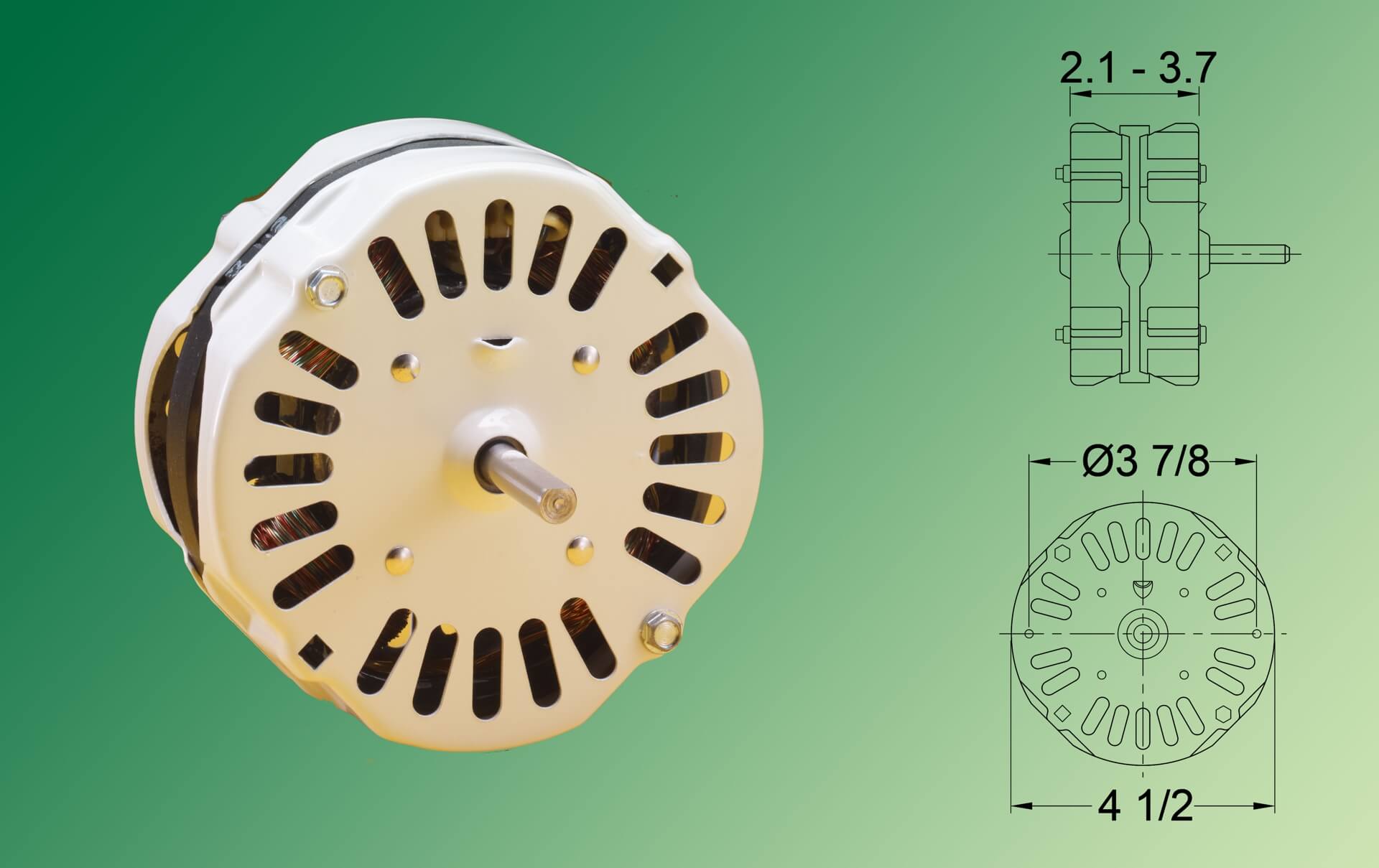

Shaded Four-Pole Motors



  • Open Frame or Totally Enclosed Frame
  • Unidirectional
  • Perfect for fans, humidifiers, compressors, pumps and HVAC equipment.
  • 1,500 RPM
  • Single or multi-speed
  • 100V to 240VAC
  • 50 or 60 Hz.
  • Sleeve or ball bearings
  • Shafts can be ¼, 5/16, 3/8 or ½-inch diameter
  • Single or dual shaft
  • 1/50th to 1/8th HP
  • UL and CSA Recognized
  • Class A or B insulation
  • One-shot or automatic recycling thermal overload protection
  • Dimension A varies from 2 1/4 to 3 1/4 inches.
TYPICAL APPLICATIONS for the shaded four-pole motor include: fans, blowers, humidifiers, dehumidifiers, air purifiers, small appliances, compressors, gearhead drives, pumps, and heating and ventilation equipment.

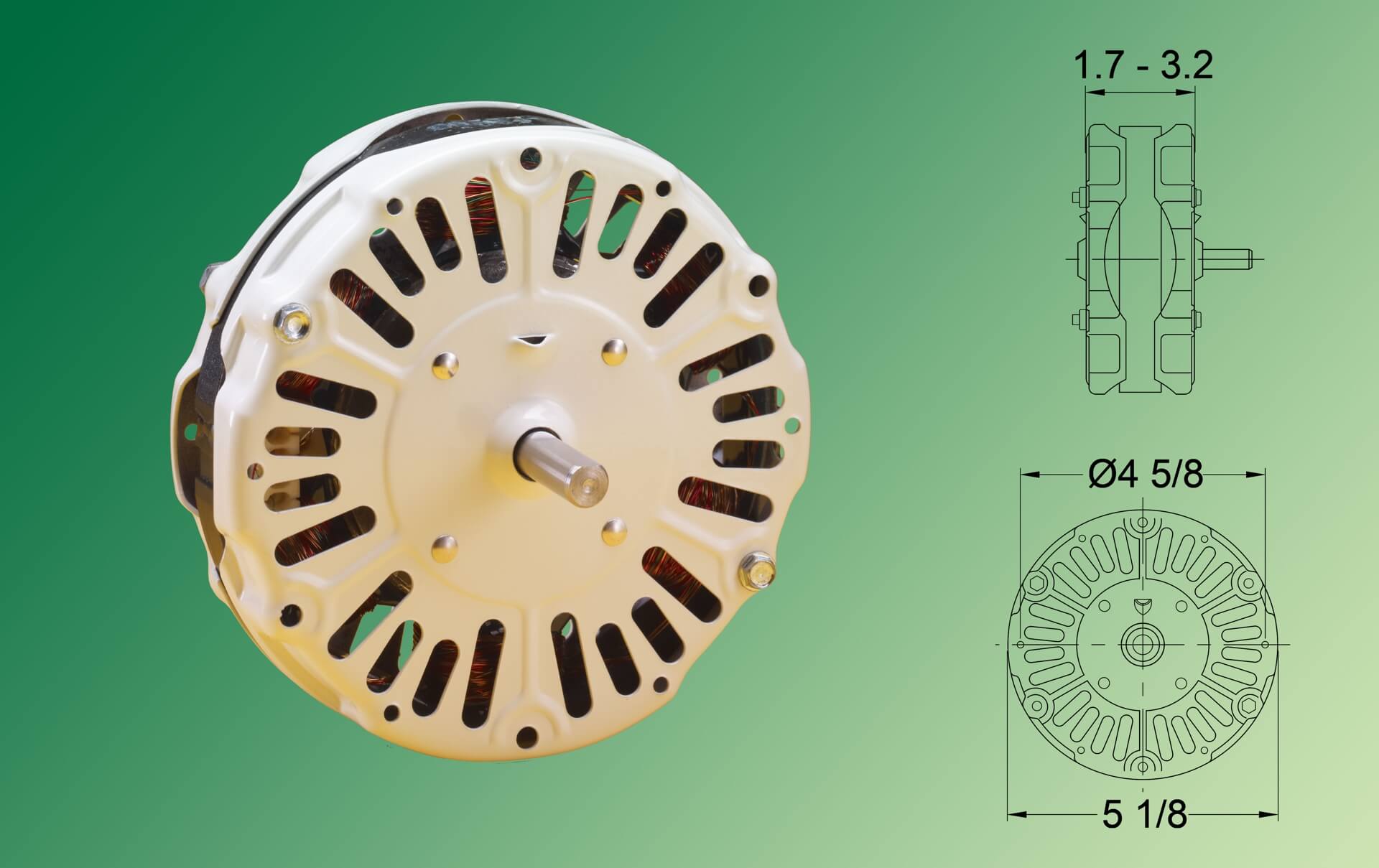

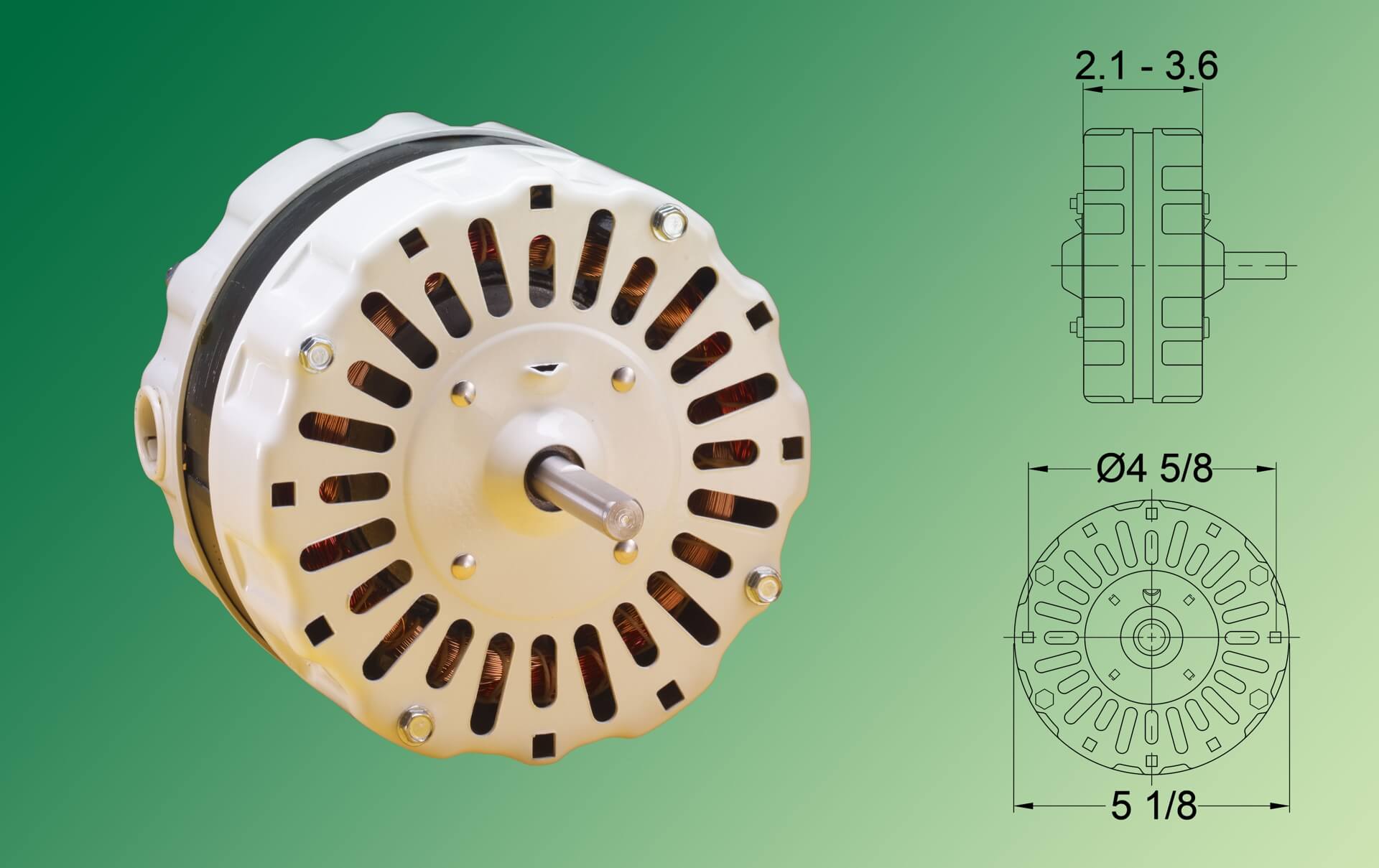

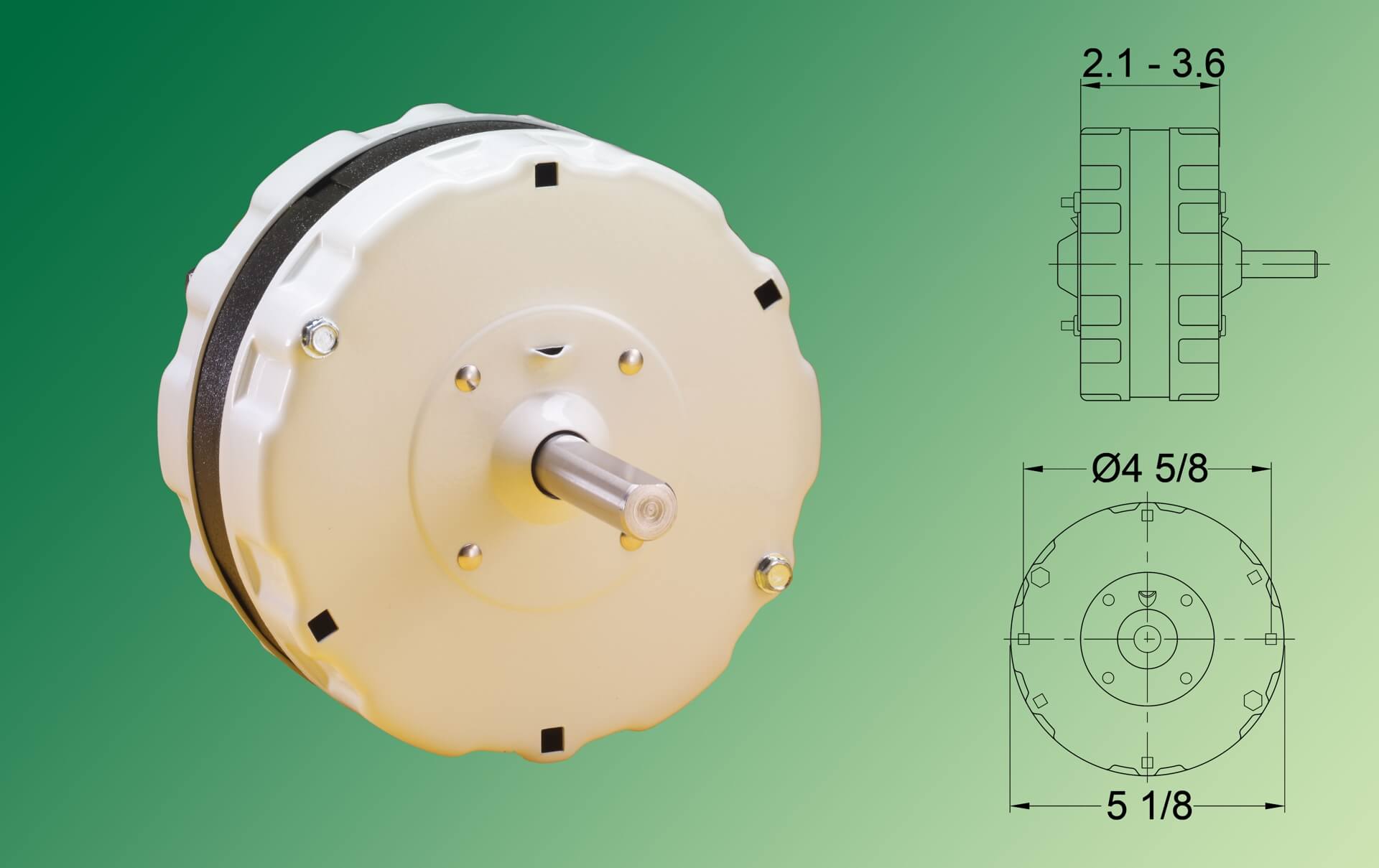

Shaded Six-Pole Motors



  • Open Frame or Totally Enclosed Frame
  • Unidirectional
  • Perfect for fans, humidifiers, compressors, pumps and HVAC equipment.
  • 1,000 RPM
  • Single or multi-speed
  • 100V to 240VAC
  • 50 or 60 Hz.
  • Sleeve or ball bearings
  • Shafts can be 1/4, 5/16, 3/8 or ½-inch diameter
  • Single or dual shaft
  • 1/40th to 1/4 HP
  • UL and CSA Recognized
  • Class A or B insulation
  • One-shot or automatic recycling thermal overload protection
  • Dimension A varies from 2 1/8 to 3 5/8 inches
TYPICAL APPLICATIONS for the shaded six-pole motor include: fans, humidifiers, dehumidifiers, blowers, small appliances, and heating, ventilation and air conditioning equipment.
