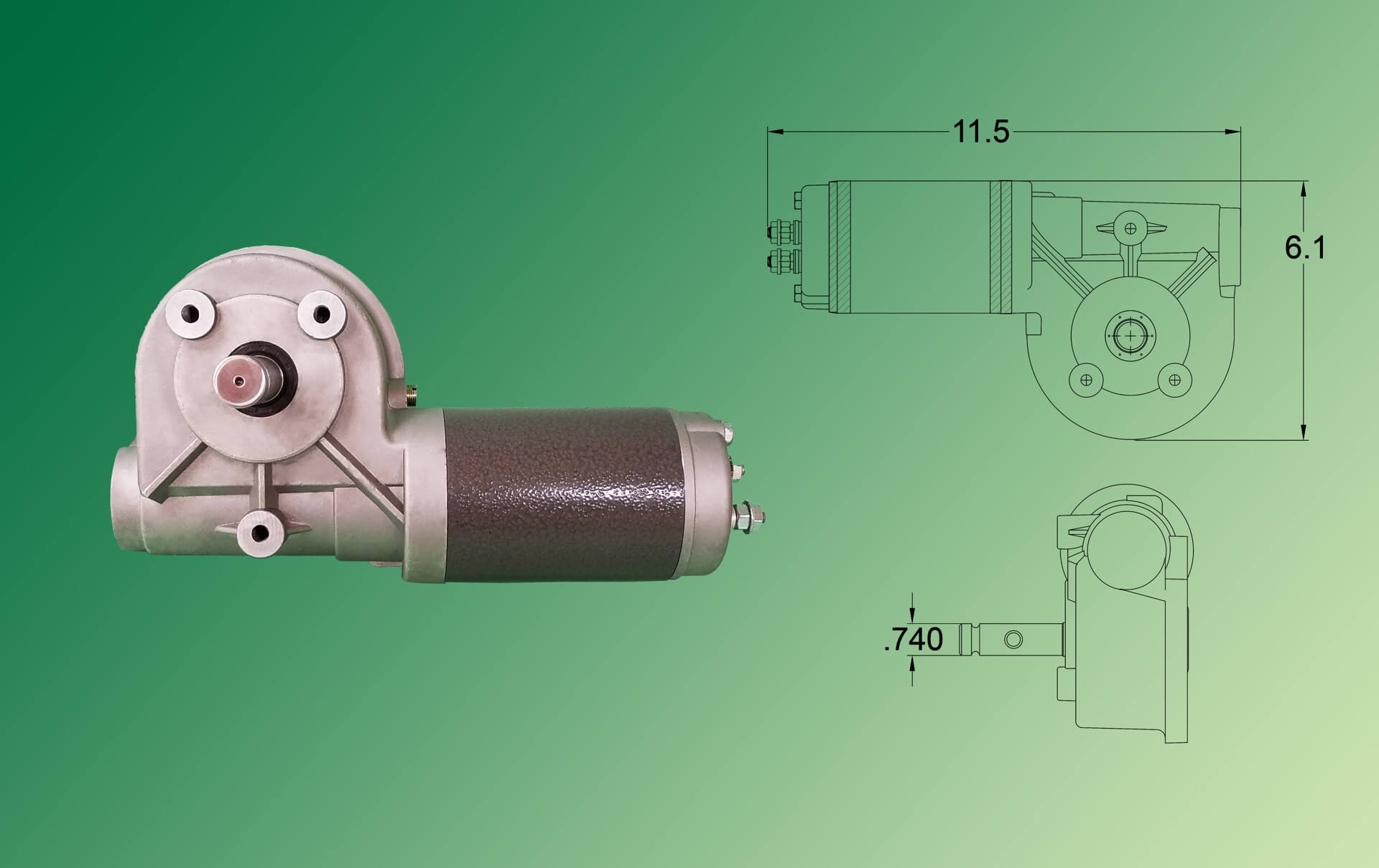

Gear Motors

  • 90:1 gear ratio
  • 12 Vdc
  • Two models rated for 790 in-lbs and 1125 in-lbs respectively
  • Extra long life brushes yielding triple the life of the competition
  • High viscosity oil eliminates oil leakage
  • Face mounted
  • No load speed approximately 60 rpm CW direction – 57 rpm CCW direction
  • Water resistant design
  • Mounting – Three point bulkhead 5/16-18 UNC threaded holes
  • Output shaft – 3/4″ OD with 5/16″ through hole and 3/16″ keyway
  • Replaces Superwinch 719527 or 719627 roll tarp motors
